In the field of modern precision machining (mechanical processing), PCD inserts have become a crucial tool for meeting specific material processing requirements, thanks to their outstanding performance. Whether it's the stringent demands for high - precision parts in the aerospace industry or the efficient mass production in the automotive industry, PCD inserts play an irreplaceable role.

This article will start with the definition of PCD inserts, analyze their core advantages, common types in detail, and introduce a professional PCD tool manufacturer - LINKUT

1、What Is a PCD Insert?

A PCD (Polycrystalline Diamond) insert is a cutting tool tip used in CNC (Computer Numerical Control) machine tools, made of diamond microparticles. These diamond microparticles or diamond crystals are closely combined with a binder through a process called "sintering" under high - temperature and high - pressure conditions, forming a robust tip structure.

In terms of performance characteristics, PCD inserts take full advantage of the toughness of diamond itself. They can cut a variety of abrasive materials and bring better surface finish to the workpiece material.

During the manufacturing process, PCD inserts are precisely designed and processed to ensure excellent accuracy during machining. For example, their accuracy advantage can be fully demonstrated in precision gear processing. In addition, they have stronger wear resistance and can maintain stable cutting performance during long - term use.

Compared with other types of cutting tools, PCD inserts stand out in terms of hardness and wear resistance. This advantage is closely related to their structural design: usually, the PCD tip is fixed on a carbide substrate. The high strength of the carbide and the high hardness of the diamond complement each other, further enhancing the overall performance of the tool.

In terms of application scenarios, PCD inserts are mainly used in CNC turning, CNC milling, and boring operations, especially suitable for processing non - ferrous materials such as aluminum and copper.

With its excellent toughness, PCD inserts are widely used in many industries with extremely high processing requirements, such as aerospace, automotive manufacturing, and the electronics industry.

These industries generally require high - speed machining processes and have strict requirements for tight tolerances of parts. PCD inserts can precisely meet these core needs and provide strong support for high - quality production.

2、Benefits of Using PCD Inserts

Choosing PCD inserts for processing can bring various benefits to enterprises. The advantages run through all aspects of production, from improving production efficiency to reducing costs and ensuring product quality.
1）Longer Tool Life

Diamond itself has extremely high toughness, which makes the service life of PCD inserts far exceed that of traditional tools. Compared with carbide tools, the effective service time of PCD inserts can be extended by 10 times, and in some cases, up to 90 times. The longer service life makes PCD inserts an ideal choice for high - volume production. Enterprises do not need to replace tools frequently, which not only reduces the labor cost of tool replacement but also significantly reduces the tool procurement cost. In the long run, it can effectively control production costs.

2）Higher Speed Machining Abilities

The special structure of PCD inserts enables them to withstand extremely high cutting speeds. During high - speed cutting, the cycle times are greatly shortened, and the production efficiency of enterprises per unit time is significantly improved. More importantly, even under high - speed machining conditions, PCD inserts can still maintain the integrity of their structure and will not experience excessive wear or damage due to high - speed operation, ensuring the stability and continuity of the processing process.

3）Excellent Accuracy and Minimal Edge Roughness

Using PCD inserts for processing can precisely control machine tolerances, bringing a cleaner and smoother cutting effect to the workpiece. This advantage is crucial for the processing of parts with extremely high requirements for assembly accuracy and surface finish. In addition, during the cutting process, PCD inserts can effectively slow down the wear mechanism and reduce the degree of edge wear, thus maintaining excellent cutting accuracy for a long time and avoiding processing errors caused by tool wear.

4）Durability
PCD inserts have extremely high durability, which means that the frequency of tool replacement is very low throughout the production cycle. Reducing the number of tool replacements allows CNC machine tools to be used more fully during the production process. The machine tool does not need to be shut down frequently for tool replacement and adjustment, effectively reducing non - production time and further improving equipment utilization and overall production efficiency.

5）Saves Costs Over Time
From the perspective of the initial purchase cost, the price of PCD inserts is relatively higher than that of some CNC machining tools. However, from a long - term use perspective, the high durability and long service life of PCD inserts give them significant cost advantages. Due to their long service life, enterprises do not need to purchase new tools frequently. At the same time, it reduces the production interruptions and labor input caused by tool replacement. In the long term, it can save a large amount of costs for enterprises and improve economic benefits.

6）Reduces Downtime of CNC Machines
Frequent shutdowns to replace worn - out tools are one of the important factors leading to a decrease in the production efficiency of CNC machine tools. PCD inserts, with their long life and high durability, do not require frequent shutdowns for tool replacement. This not only reduces the downtime of the machine tool but also reduces the time cost of machine tool maintenance and adjustment, allowing the machine tool to continue to produce stably and significantly increasing the production output per unit time.

3、Common PCD Tools and Equipment in Machining
Based on the excellent performance of PCD materials, a variety of different types of PCD tools have emerged in the industry to meet diverse processing needs. The following are several common PCD tools and their application scenarios:

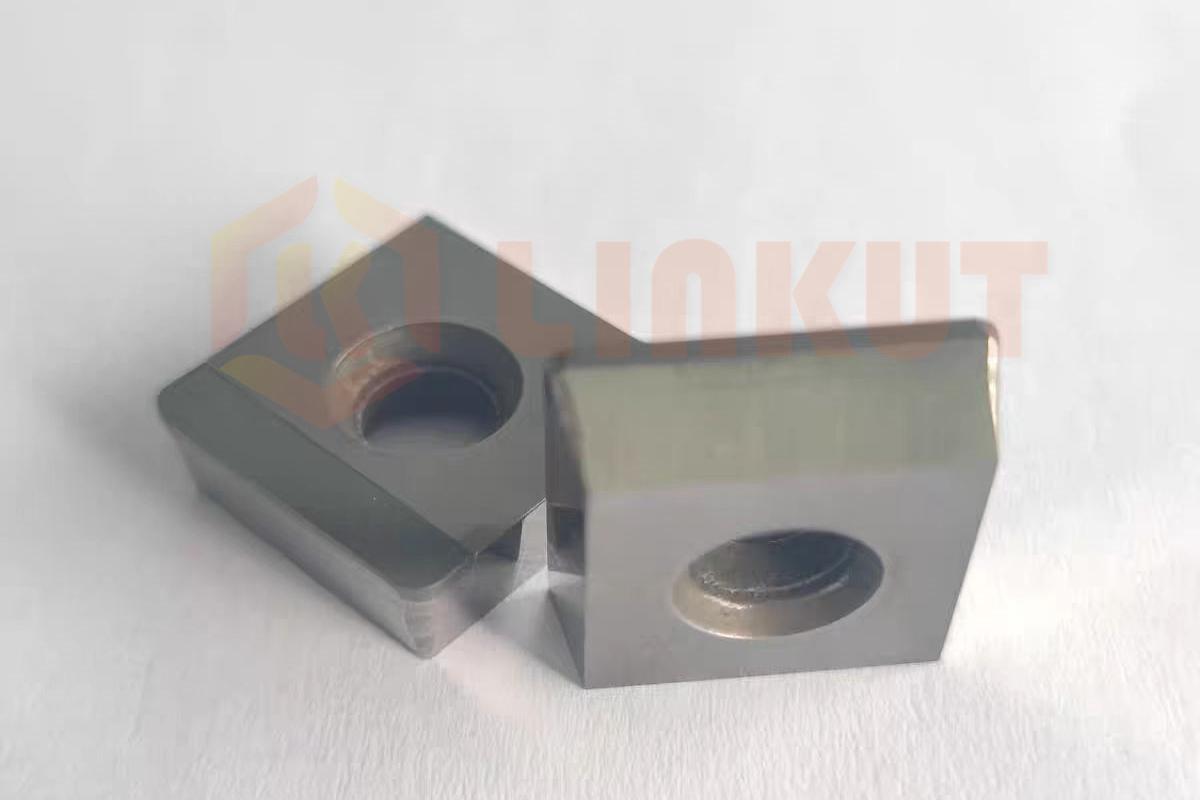

1）PCD Turning Inserts
These inserts are specifically designed for turning operations and perform outstandingly in the finishing and semi - finishing operations of workpieces. Whether it is the processing of simple revolving surfaces such as cylindrical and conical surfaces or the turning of complex curved surfaces, PCD turning inserts can cut precisely, providing a high - quality surface finish for the workpiece. They are suitable for the processing of high - precision revolving parts such as automotive components and electronic components.

2）PCD Milling Cutters
PCD milling cutters have obvious advantages in high - speed milling. They are especially suitable for processing non - ferrous metals, aluminum alloys, and composite materials. In scenarios such as the processing of composite components in the aerospace industry and the milling of aluminum alloy parts in the automotive industry, PCD milling cutters can cut stably at high speeds, reducing processing time while ensuring the dimensional accuracy and surface quality of the parts and avoiding processing defects caused by material characteristics.

3）PCD Boring Tools
Boring operations require extremely high precision, and PCD boring tools are designed to meet this need. They are mainly used for the internal hole processing of workpieces and can precisely control the size, shape, and surface roughness of the internal hole. They are suitable for the processing of parts that require high - precision internal hole structures, such as engine blocks and hydraulic valve blocks, ensuring the precise fit of the internal hole with other components.

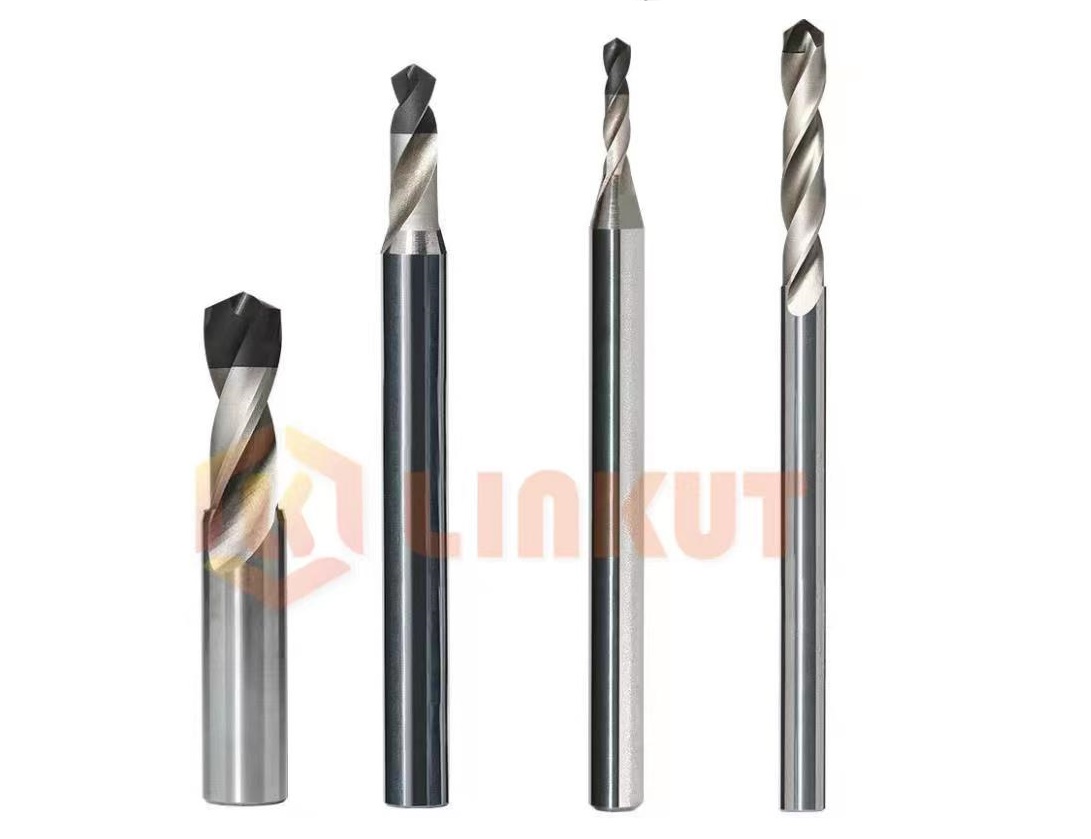

4）PCD Drills and Reamers
In processing scenarios that require ultra - precise hole tolerances and excellent hole surface finish, PCD drills and reamers are the ideal choice. PCD drills can accurately drill small or deep holes with minimal dimensional errors during the drilling process. PCD reamers can further finish the drilled holes, greatly improving the hole accuracy and surface finish. They are applicable to fields such as precision hole processing in electronic equipment and hole processing of medical device parts.

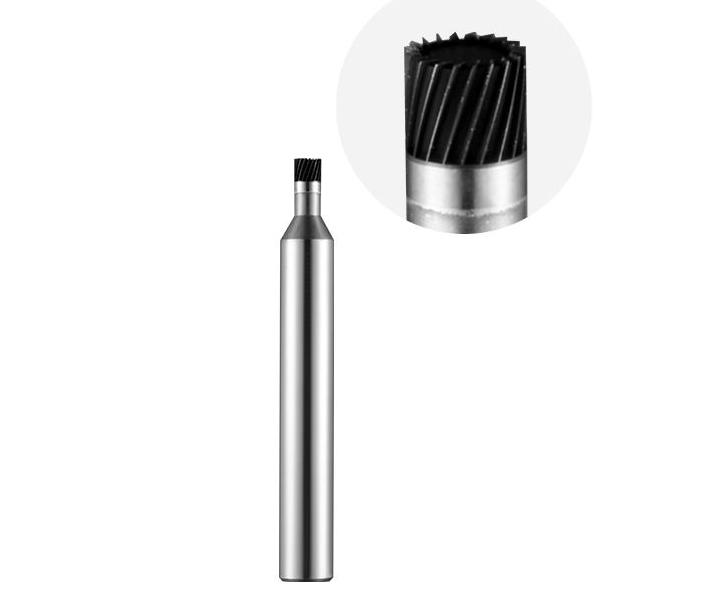

5）PCD End Mills
PCD end mills perform outstandingly in the processing of composite materials and can be used to cut graphite, ceramics, and various plastics. In scenarios such as graphite electrode processing in the electronics industry, ceramic component cutting in the new energy field, and plastic mold processing, PCD end mills can effectively deal with the characteristics of different materials, achieving high - efficiency and high - precision cutting and avoiding problems such as material cracking and burrs.

4、Professional PCD Tool Manufacturer - LINKUT

In the field of PCD tools, choosing a professional and reliable manufacturer is the key to ensuring the quality and performance of the tools. As a professional manufacturer dedicated to the research and production of PCD tools, LINKUT provides high - quality PCD tool products to global customers with years of industry experience, advanced production technology, and a strict quality control system.

LINKUT deeply understands the processing needs of different industries. For special processing scenarios in aerospace, automotive, electronics, medical devices, and other fields, it develops and produces a full range of PCD tool products, including PCD turning inserts, PCD milling cutters, PCD boring tools, PCD drills and reamers, and PCD end mills.

The company uses high - quality diamond microparticles and advanced sintering processes to ensure that each PCD tool has excellent hardness, wear resistance, and accuracy, meeting customers' stringent requirements for high - efficiency and high - precision processing.

In addition, LINKUT has a professional technical team that can provide customized PCD tool solutions for customers. Whether it is a special - sized tool requirement or processing optimization for specific materials, the technical team can provide comprehensive technical support and services based on the actual production situation of customers, helping customers improve production efficiency, reduce costs, and achieve high - quality production goals.
If you are looking for high - quality and cost - effective PCD tools or need customized PCD tool solutions, LINKUT will be your ideal choice. We are committed to helping your production and processing business reach new heights with professional products and services.
